VLL Project — Four Seasons

Posted on March 27, 2011 by previousstudent
1. A Vermont sunset in the fall
2. An Easter sunrise in a gothic cathedral
3. Noon in the Caribbean
4. A winter afternoon before the snow

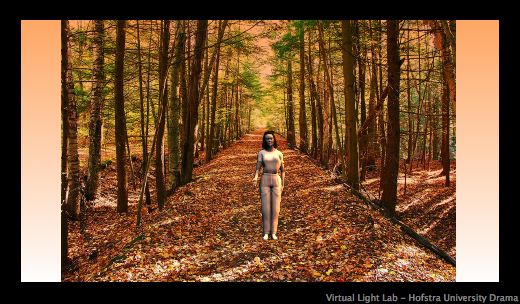

  1. A fall sunset in Vermont – using strong orange sidelight to indicate the time of day and more subtle fall colors to indicate the time of year.
    1. Cyc Light NC50%, G1543 at 75%, NC 100% at the bottom
    2. L063 at 75%, 17 feet above deck, 12 feet SL, 8 feet DS, 18 foot throw, 37 degree elvation, 56 degree side angle
    3. L021 at 75%, 17 feet above deck, 6 feet SL, 8 feet DS, 15 foot throw, 48 degree elevation, 37 degree side angle
    4. L020 at full, 17 feet above deck, 12 feet SR, direct sidelight, 16 foot throw, 43 degree elevation angle
    5. G885 at 75%, 17 feet above deck, 12 feet SR, 16 feet DS, 23 foot throw, 29 degree elevation, 37 degree side angle.
  2. Easter sunrise in a Gothic Cathedral – using light pastel colors to indicate sunrise, as well as directionality to indicate the sun’s position.
    1. Cyc Lights NC 50%, G1543 75% at top, NC full at bottom
    2. L063 at 75%, 17 feet above deck, 12 feet SL, 8 feet DS, 18 foot throw, 37 degree elevation, 56 degree side angle
    3. L035 at full, 17 feet above deck, 12 feet SL, direct sidelight, 16 foot throw, 43 degree elevation angle
    4. L009 at 75%, 17 feet above deck, 6 feet SR, 8 feet DS, 15 foot throw, 48 degree elevation, 37 degree side angle
    5. G885 at 75%, 17 feet above deck, 12 feet SR, 16 feet DS, 23 foot throw, 29 degree elevation, 37 degree side angle

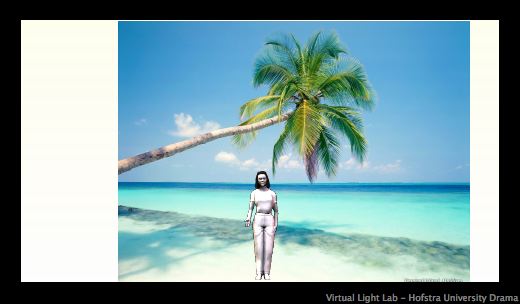

  3. Noon on a hot Summer day in the Caribbean – almost all top light to indicate the time of day, as well as a lot of brightness to indicate the location and season.
    1. Cyc Lights NC 50%, G1560 at 75% at top, NC full
    2. L035 at 50% 17 feet above deck, 12 feet SL, direct sidelight, 16 foot throw, 43 degree elevation angle
    3. G885 at full, 17 feet above deck, 3 feet SL, 16 feet DS, 20 foot throw, 34 degree elevation, 11 degree side angle
    4. G885 at 75% 6 feet SR, 8 feet DS, 15 foot throw, 48 degree elevation, 37 degree side angle
    5. G433 at full, 17 feet above deck, 12 feet SR, direct sidelight, 16 foot throw, 43 degree elevation angle
  4. Winter Afternoon, just before the snow – using toned-down colors to indicate the season and less sidelight to indicate the time of day.
    1. Cyc Light NC 50%, G1529 at 75% at the top, NC 100% at the bottom
    2. L003 with gobo, 75%, 17 feet above deck, 12 feet SR, 16 feet DS, 23 foot throw, 29 degree elevation, 37 degree side angle.
    3. L013 at 75%, 17 feet above deck, 3 feet SR, 8 feet DS, 14 foot throw, 52 degree elevation, 21 degree side angle
    4. L165 75%, 17 feet above deck, 9 feet SR, 16 feet DS, 21 foot throw, 31 degree elevation angle, 29 degree side angle
    5. G885 at 75%, 17 feet above deck, 12 feet SR, 16 feet DS, 23 foot throw, 29 degree elevation, 37 degree side angle
